HOW-TO: DSLS Offline Concurrent License

To extract:

1. Open Nodelock Key Management (DSLS) (Start > All Programs > CATIA > Tools)

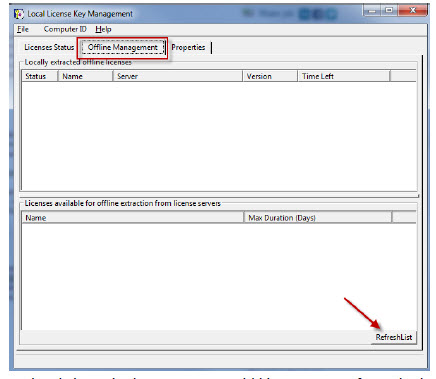

2. Click on the ‘Offline Manangement’ Tab and then click ‘Refresh’

3. Right Click on the license you would like to extract from the license server, Click Extract

4. Select the number of days for extraction, click OK

To Restitute:

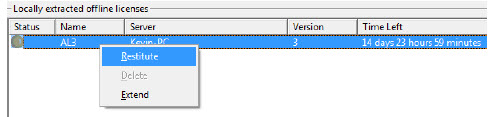

1. Right click on the locally extract offline license, Click Restitute:

2. Click OK
